Carto tips: Using blend modes and opacity levels

3 minute read
Colour is one of the main graphic elements that a cartographer uses to make their map clear to read. Amongst other things we use colour to create familiarity, to differentiate features and to create a clear visual hierarchy.

There are many things we can do to the features on our maps to change their appearance and many techniques we can apply to adjust the colours. Adjusting opacity levels and applying blend modes are the two techniques that we will explore in this post and we will look at some examples of how we can use them together to create effective visualisations.

So, what are blend modes?

OK, the obvious bit first. Opacity levels are on a scale from 0-100%; where 100% is fully opaque and 0% is fully transparent. Blend modes however are a little less obvious and there are many to choose from. Essentially they affect how the colours of different features interact with each other by darkening, lightening and/or blending and can also let us ‘see through’ features.

Let’s look at some of the most commonly-used options:


This is the best mode for darkening (and to be honest it’s the one I use most often.) It multiplies the luminance levels of the current layer’s pixels with the pixels in the layers below. It is good for removing whites whilst maintaining darker colours.


This does the opposite to multiply so it multiplies the light pixels.


Uses a combination of the Screen blend mode on the lighter pixels, and the Multiply blend mode on the darker pixels. It uses a half-strength application of these modes, and the mid-tones (50% grey) become transparent.


This blend mode simply adds pixel values of one layer with the other.

Some examples

Now that we’re a bit more familiar with some blend modes we’ll take a look at some visualisations so we can see the effects. We’re going to use the datset of routes that we showcased in July 2016 as our example. We use a combination of opacity levels and blend modes to help us depict density/overlapping features and to make the data much clearer and easier to interpret. Here we are applying the blend modes to each individual feature but alternatively they can be applied to a whole layer.

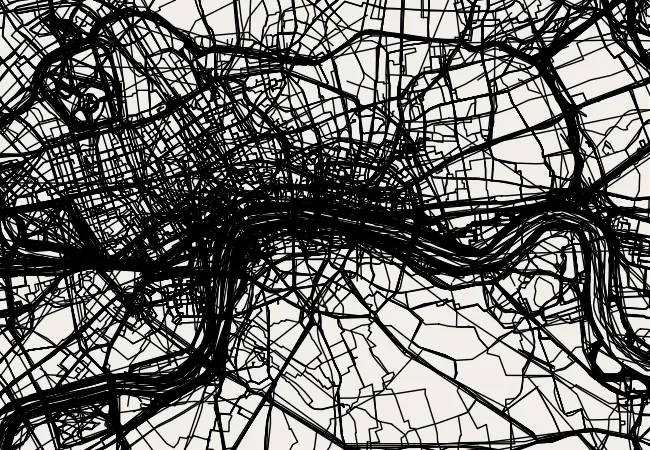

The data in it’s raw form – difficult to interpret!
The routes have been thinned and a colour applied (#e60060)

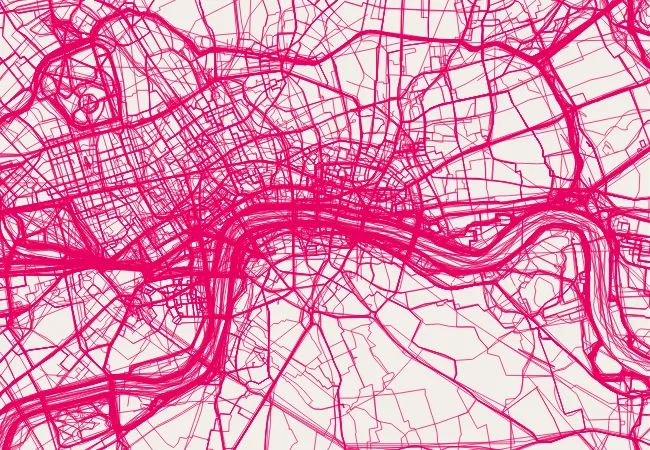

Opacity level for each line adjusted to 10%

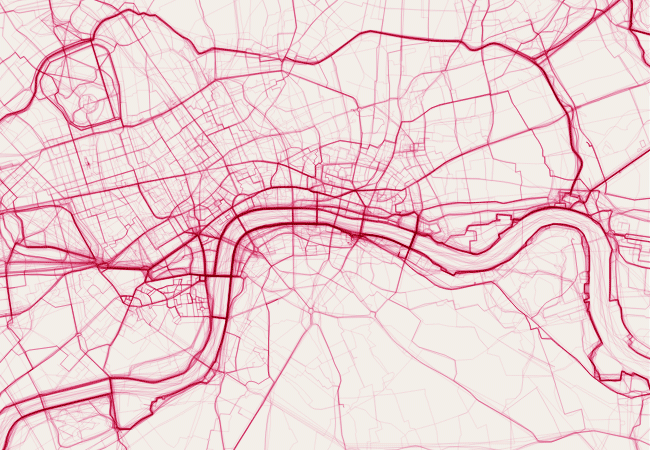

Final result – the multiply blend has been applied to each line

As you can see from the examples above, adjusting the opacity level helped but by adding the multiply blend we can more easily interpret the density of routes.

We can also create some nice effects by using lighter colours on a dark background:

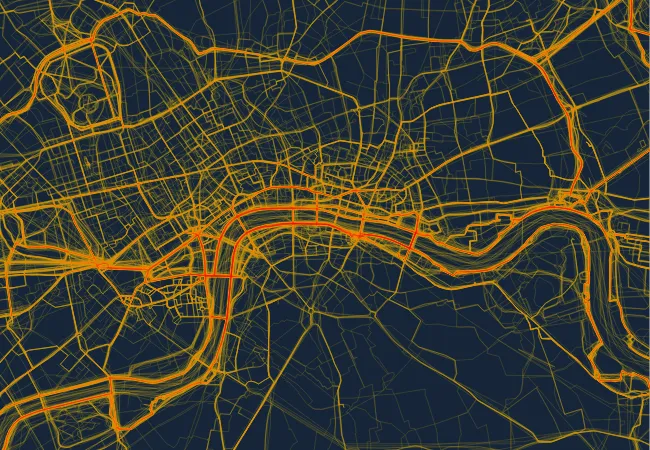

Routes colour #ffcb00, multiply blend, 20% opacity

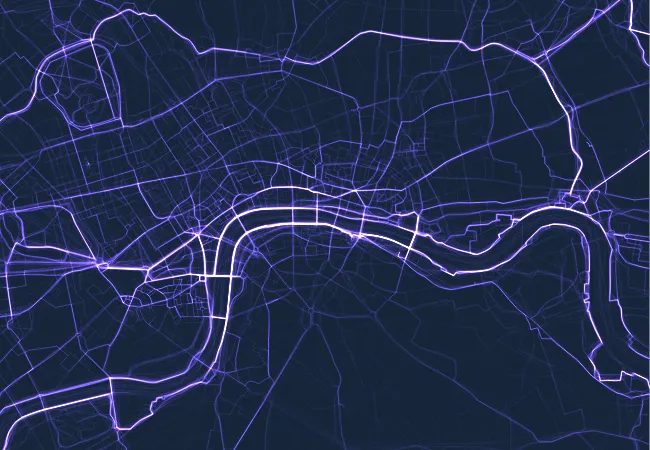

Routes colour #6450d7, addition blend, 10% opacity

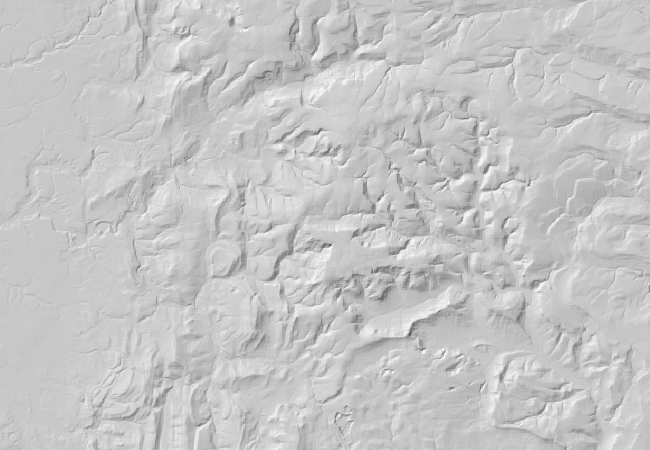

We can also use opacity levels and the multiply blend when we’re mapping terrain. In this example we’re stacking four layers on top of each other (three hillshades and a colour ramp) and tweaking the opacity levels of each. This can help us achieve a much more detail-rich visualisation of the terrain:

As cartographic designers we value the subtleties of map design. It’s important to refine your styles and we highly recommend taking the time to do this. Visualisations, including those above, take a period of trial and error to get right and often very subtle tweaks and techniques can make a big difference – it’s also the fun part!

Let us know if you use these techniques to create your own visualisations.
